Like every member of the V-Max Patriot family, the 7580V features the rugged V-Max, four-cylinder pump designed for extreme duty and maximum efficiency under all load conditions. The BendPak 7580V is a 2-stage lubricated reciprocating air compressor built with 100% cast-iron pumps to provide the quality and performance required by heavy-use applications like automotive/body repair shops and industrial manufacturing and fleet services.

The Next Stage in Air Compressor Evolution

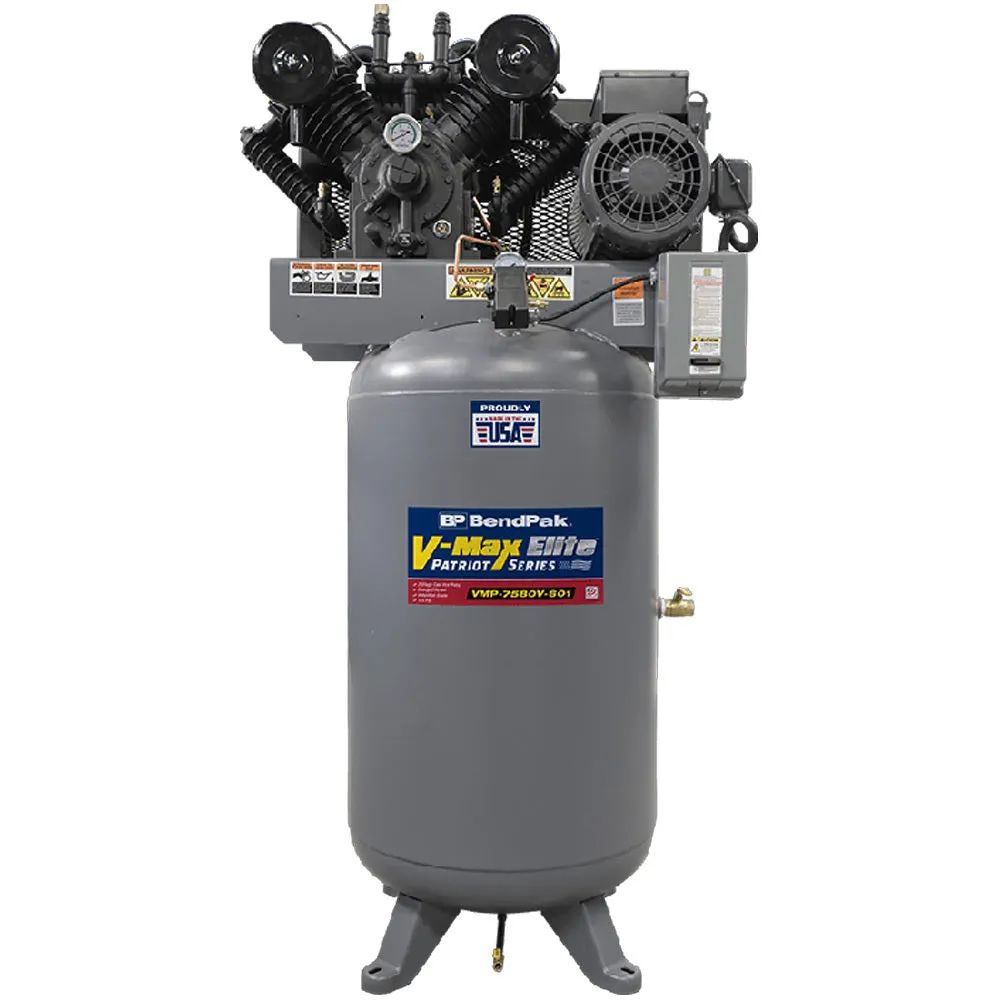

Meet the V-Max Patriot 7580V, 3-phase air system. Like every member of the V-Max Patriot family, the 7580V features the rugged V-Max, four-cylinder pump designed for extreme duty and maximum efficiency under all load conditions. The BendPak 7580V is a 2-stage lubricated reciprocating air compressor built with 100% cast-iron pumps to provide the quality and performance required by heavy-use applications like automotive/body repair shops and industrial manufacturing and fleet services.

Specification:

-    3 PHASE UNIT
-    Assembled in USA
-    ASME, UL, CSA certified
-    7.5 HP energy-efficient motor
-    Extra-quiet, low-RPM pump
-    Cast-iron V-Max Elite pump features simple splash lubrication for total reliability and a "V-4" finned cylinder configuration that provides 360° cooling
-    Proven air-cooled design is economical, reliable and environmentally friendly
-    Two compression rings and one oil control ring provide excellent oil control and high-efficiency air delivery
-    Dual drive belts require less belt tension, resulting in less load on pump bearings, longer belt life and low vibration
-    Fully-enclosed belt guard
-    Cast-iron pump and heads are more stable under heavy workloads and do not warp from heat like aluminum cylinders with pressed-in sleeves
-    ASME-rated tank
-    Large surface area and cooling fins on cylinders and forced-air after-cooler provide efficient heat dissipation for lower operating temperatures and dryer air. Compressor runs cooler, oil life is extended and maintenance is reduced
-    Tapered roller main bearings provide full contact and support of the crankshaft, and needle-type piston pin bearings properly distribute bearing loads
-    Precision balanced flywheel has forced-air fan blades for optimum compressor cooling and life
-    Magnetic starter provides thermal overload protection and minimizes start loads, providing long life and trouble?free operation
-    ASME-rated safety valve protects the compressor from overpressure and safeguards the operator
-    Balanced flywheel and counterbalanced crankshaft result in nearly vibration-free operation
-    Readily accessible disc-valves do not require disassembly of compressor piping, for easy accessibility and reduced maintenance cost and downtime
-    Corrosion-resistant tubing for coolers, separators and valves for longer life and reduced maintenance
-    Oversized ductile iron crankshaft provides extra strength and longer wear
-    High-density, die-cast aluminum alloy rods minimize reciprocating weight
-    Rugged cast iron oil reservoir has convenient sight gauge glass, large oil drain and convenient fill cap
-    Automatic pressure switch provides auto start and stop
-    Integrated pressure unloader valves are built into the intake valve assembly on the air compressor head, reducing internal pump heat from initial start-up compression
-    Pressure gauge with service valve
-    Oversize replaceable air filters

BENDPAK NUMBER #5179113
